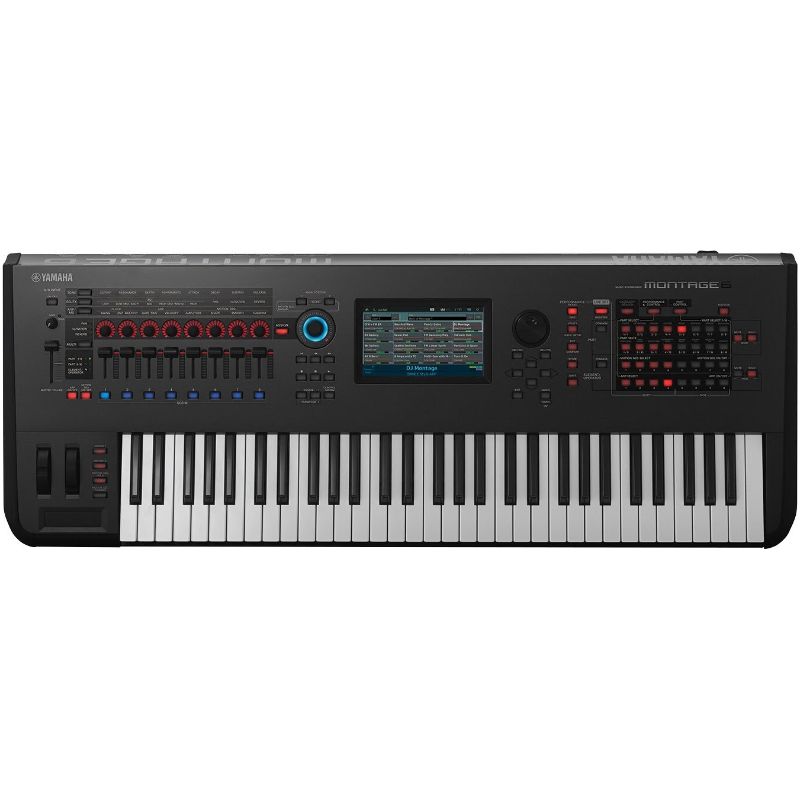

DEMO Yamaha Montage6 61-Key Synthesizer

Music in Motion
From the stroke of piano keys to an orchestral crescendo, music always moves. Montage introduces new ways for musicians to control sound and create expression with Motion Control. Motion Control puts rhythmic and multidimensional control at the musician's fingertips for sound that moves from radical to sublime.

Super Knob
Create dynamic sound changes from radical to sublime with the Super Knob. The Super Knob can control multiple parameters simultaneously, creating any sound imaginable. You can change your listening position from the front of an instrument to the back seat of a concert hall, or radically change the character of a performance from atmospheric and mellow to rhythmic and edgy. The Super Knob can even be assigned to a second FC7 foot controller, allowing you to manipulate the sound when playing with both hands.

USB Audio/MIDI Connection
Connect MONTAGE to your computer with a single USB cable and capture every nuance of your creativity into your DAW. MONTAGE boasts a powerful USB driver that can send 16, and receive 3, channels of STEREO 24 bit/44.1 kHz digital audio to and from your computer or iOS device. MONTAGE is also class compliant and does not require any additional hardware. The USB connection also features full MIDI support of 16 channels. MONTAGE supports the sampling rate up to 192 kHz.

Cubase AI
MONTAGE is bundled with Cubase AI, Steinberg's professional music production application, which offers integrated recording and editing. Cubase AI is a special, compact version which uses the same core technologies as Cubase Pro - exclusive to customers of selected Steinberg and Yamaha hardware products. It provides all the basic tools for recording, editing and mixing - from the initial idea to the final masterpiece. Cubase AI is the perfect entry into the world of computer-based music production and offers powerful, yet easy-to-use software tools for all genres.

Features
• Motion Control is a highly customizable synthesizer engine control matrix
• The Super Knob controls multiple parameters simultaneously for highly expressive sound interaction
• Motion Sequences are tempo-synchronized control sequences for creating rhythmic sound changes
• The Envelope Follower lets internal or external audio control synthesizer parameters
• AWM2 provides data compression without sacrificing sound quality
• 256-notes total polyphony: 128-note stereo AWM2 + 128-note FM-X
• Flash memory lets you integrate your own custom samples as well as synth libraries from yamahasynth.com
• FM-X features 8-operator FM synthesis capable of producing incredible dynamic sound
• Cubase AI download included

Specifications:

Keyboard
Number of Keys: 61
Type: FSX Keyboard
Initial Touch: Yes
Aftertouch: Yes
Tone Generator
Tone Generator: Motion Control Synthesis Engine AMW2: 8 Elements FM-X: 8 Operators, 88 Algorithms
Maximum Polyphony: AWM2: 128 (max.; stereo/mono waveforms) FM-X: 128 (max.)
Multi Timbral Capacity: 16 Parts (internal), Audio Input Parts (A/D, USB)
Wave: Preset: 5.67 GB (when converted to 16 bit linear format), User: 1.75 GB
Performance: 2707
Filter: 18 Types
Effects: Reverb x 12 types, Variation x 88 types, Insertion (A, B) x 88 types, Master Effect x 26 types A/D part insertion x 83 types (Preset settings for parameters of each effect type are provided as templates) Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands)
Performance Recorder
Tracks: 16 Sequence tracks, Tempo track, Scene track
Recording type: Real time replace, Real time overdub, Real time punch in/out
Note Resolution: 480 ppq (parts per quarter note)
Tempo (BPM): 5 - 300
Arpeggio: Parts: 8 Parts simultaneous (max.), Preset: 10,239 types User: 256 types
Sequence formats: MONTAGE original format, SMF formats 0, 1
Sequencer
Patterns: 128 patterns
Pattern tracks: 16 Sequence tracks
Pattern Recording type: Real time replace, Real time overdub
Songs: 128 songs
Song tracks: 16 Sequence tracks, Tempo track, Scene track
Song recording type: Real time replace, Real time overdub, Real time punch in/out
USB Audio Interface
Sampling Frequency = 44.1kHz
• Input: 6 channels (3 stereo channels)
• Output: 32 channels (16 stereo channels)
Sampling Frequency = 44.1kHz - 96kHz
• Input: 6 channels (3 stereo channels)
• Output: 8 channels (4 stereo channels)
Other
Controllers: Master Volume, AD Input Gain knob, Pitch Bend wheel, Modulation wheel, Ribbon Controller, Control Sliders x 8, Knobs x 8, Super Knob, Data dial
Display: 7" TFT Color Wide VGA LCD touch screen
Connectors: USB TO DEVICE, USB TO HOST, MIDI IN/OUT/THRU, FOOT CONTROLLER 1/2, FOOT SWITCH (ASSIGNABLE/SUSTAIN), OUTPUT (BALANCED) L/MONO/R (6.3 mm, Balanced TRS jacks), ASSIGNABLE OUTPUT (BALANCED) L/R (6.3 mm, Balanced TRS jacks), PHONES (6.3 mm, standard stereo phone jack), A/D INPUT L/MONO/R (6.3 mm, standard phone jacks)
Power Consumption: 27 W
Accessories: AC Power cord, Owner's Manual, Cubase AI Download Information
Live Sets:
• Preset: 128+
• User: 2,048
Physical
Dimensions: 103.7 x 39.6 x 13.1 cm / 40.8" x 15.6" x 5.2"
Weight: 15 kg / 33.1 lb
