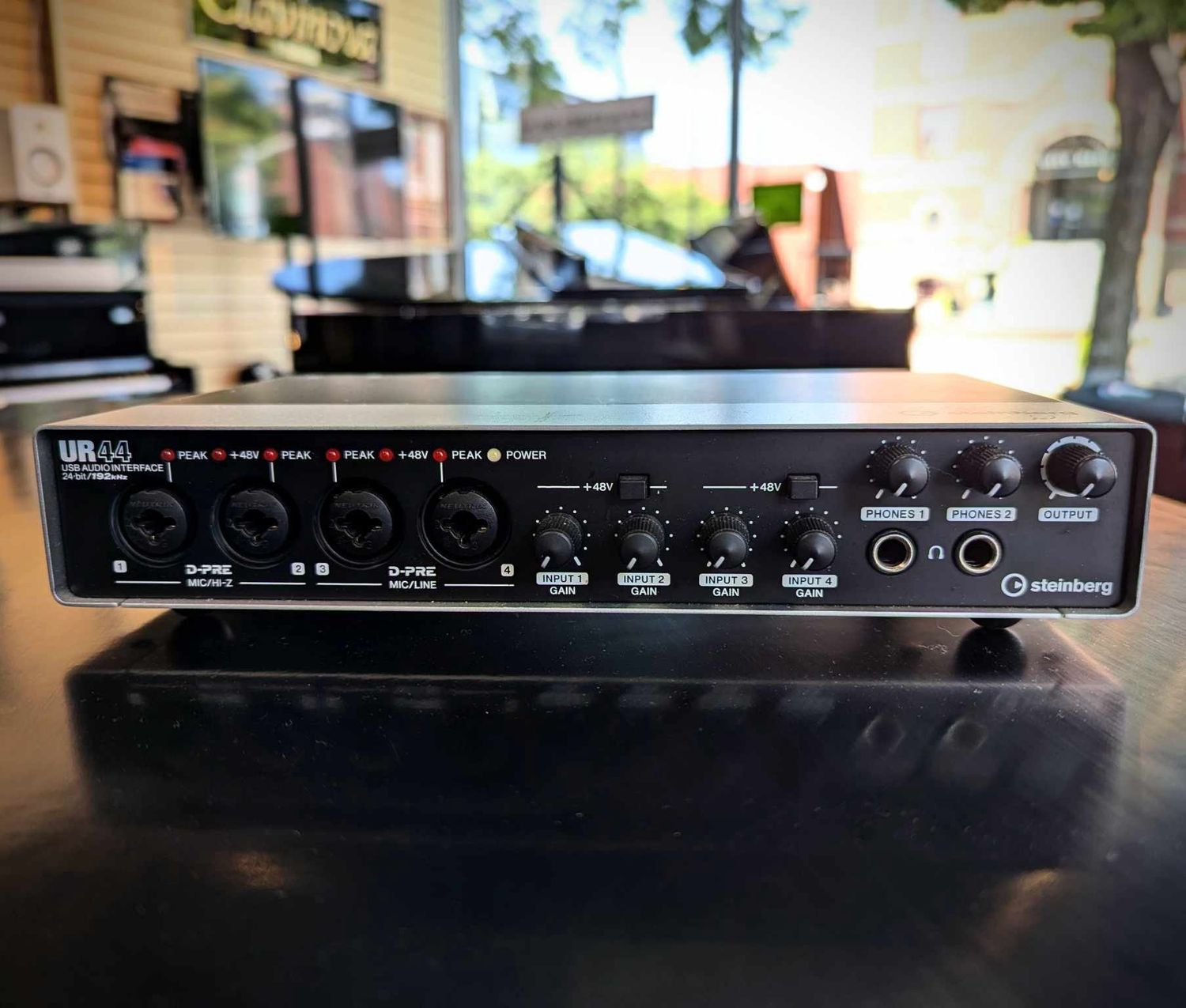

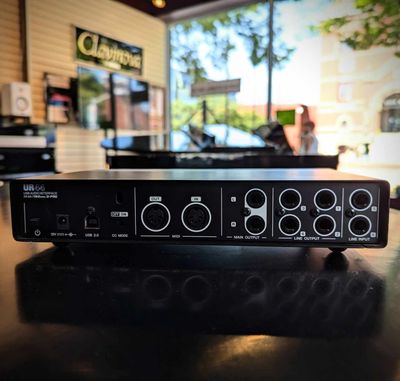

CONSIGN Steinberg UR44 USB Audio Interface (hardware only)

6 x 4 USB 2.0 audio interface with 4x D-PREs, 24-bit/192 kHz support and MIDI I/O.The perfect balance between connectivity and portability: the UR44 is a powerful audio/MIDI interface designed to suit a huge range of recording and production situations. Four mic preamps, six inputs, four output channels, MIDI I/O ports, onboard DSP power and full iPad connectivity offer an outstandingly flexible feature set.

KEY FEATURES

24-bit/192 kHz USB 2.0 audio interface
Top of the range converters provide a maximum sampling rate of 192 kHz and a resolution of 24 bits, delivering pristine audio quality.

Four Class-A D-PRE mic preamps
Yamaha's highly acclaimed D-PRE preamps deliver a truly transparent and beautifully detailed sound that is unrivaled in this product class.

Rugged full-metal casing
Built to the most exacting standards by Yamaha's experienced engineers, the UR44s full-metal chassis is rugged enough to withstand all the rigors of the road.

Compatible with major recording software
The UR44 is compatible with all major audio editing, mastering, and music production software supporting ASIO, Core Audio, or WDM standard.

MIDI input & output
For utmost flexibility, the UR44 is equipped with a MIDI I/O connect your favorite synth, a drum trigger module or whatever MIDI device you prefer!

Cubase AI included
Based on the same core technologies as the popular Cubase DAW, Cubase AI offers an intuitive feature set for composing, recording, editing and mixing.

iPad connectivity
UR44 offers connectivity with Apples iPad. When paired with Cubasis or other iOS audio apps, the UR44 offers a portable and effortlessly intuitive production experience.

Basic FX Suite
UR44 offers VST 3 versions of the onboard DSP plug-ins offering useful sound-shaping and FX tools: the Sweet Spot Morphing Channel Strip, the REV-X reverb and Guitar Amp Classics.

Latency-free monitoring with FX
UR44 offers zero-latency monitoring with FX thanks to the included dspMixFx software with even tighter integration for Cubase owners with auto-setup, custom views, and much more.

SPECIFICATIONS

General
• Connection type:USB 2.0
• Design: Desktop (2/3 19, 1HU)
• USB-powered: No
• AD/DA: 24-Bit
• Maximum sample rate: 192 kHz
• Frequency range: 20Hz to 22 kHz
• Dynamic range input: 101 dB (A-weighted )
• Class compliant mode: Yes
• Loopback function: Yes

Connectivity
• Total number of I/O: 6/4
• Analog inputs: 4 Combo, 2 TRS
• Microphone inputs: 4 (D-PRE)
• Inputs with HI-Z: 2
• Analog outputs: 4
• Phantom power: 4
• Headphones output: 2
• Digital In ADAT: No
• Digital Out ADAT: No
• Digital In S/PDIF: No
• Digital Out S/PDIF: No
• WordClock I/O: No
• MIDI I/O: Yes
• Pad switch per channel: No
• Hardware based zero-latency-monitoring: No

DSP Features
• Latency-free monitoring with FX (dspMixFx): Yes
• True Integrated Monitoring with FX in Cubase: Yes
• Guitar Amp Classics: Yes
• REV-X Reverb: Yes
• Sweet Spot Morphing Channel Strip: Yes (up to 4)
• Phase switch per channel: Yes, with computer (1-4)
• High-Pass filter: Yes, with computer (1-4)

• Weight: 1.6 kg
• Dimensions W x H x D (mm): 252 x 47 x 158
• Bundled software: Cubase AI, Basic FX Suite

Unique Features
• Full-metal casing
