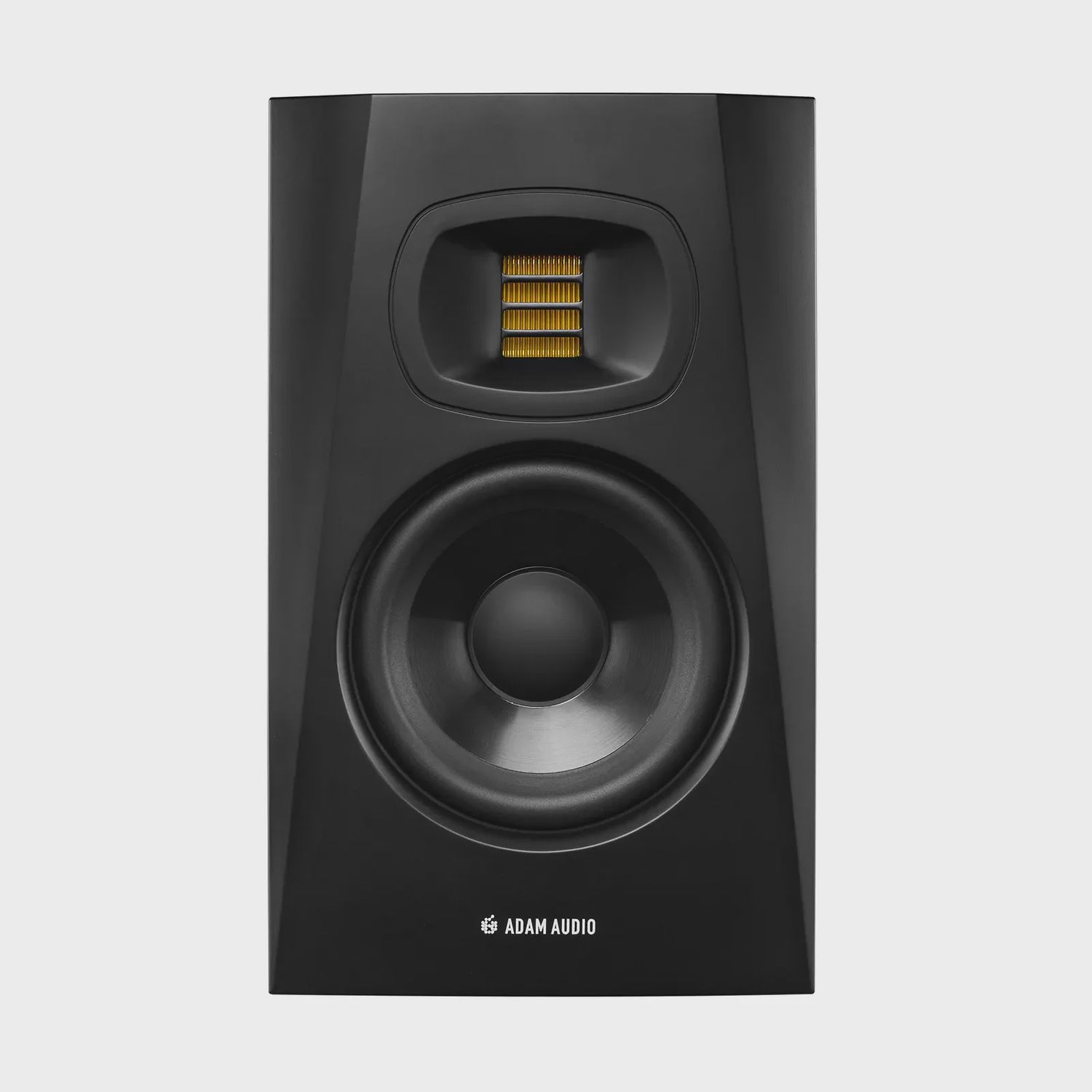

ADAM Audio T5V 5 inch Powered Studio Monitor

With its 5” woofer the bass-frequency response of the T5V extends to 45 Hz. The new U-ART tweeter, a breakthrough solution for use in high-resolution recording and mixing on a budget, goes up to 25 kHz and is mated to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

A beveled cabinet with a rear-firing bass reflex port and a small footprint allows placement anywhere in your room, no matter how small, and contains built-in DSP-controlled driver crossovers and equalization as well as multi-way analog connections. Powered with a 50 W Class D amplifier for the woofer and a 20 W Class D amplifier for the U-ART tweeter, the T5V produces SPLs of up to 106 dB per pair.

Excellent acoustic characteristics, small dimensions and an outstanding cost/performance ratio make this studio monitor perfectly suited for use in small control rooms in music, video and broadcast production.

Specifications

WOOFER
Number: 1
Basket diameter: 5" (127 mm)
Cone Material: Polypropylene

TWEETER
Number: 1
Type: U-ART
Diaphragm Area: 4 inch square (2420 mm2)
Equiv. Diaphragm diameter: 1.9" (48 mm)
Velocity Transform Ratio: 4:1
Diaphragm Weight: 0.17 g
Waveguide: HPS

BUILT-IN AMPLIFIERS
Number: 2
Woofer: 1
Type: PWM
Amp. Power RMS: 50 W
Tweeter: 1
Type: PWM
Amp. Power RMS: 20 W

CONTROL OPTIONS
Input Sensitivity: Switchable +4 dBu / -10 dBV
Gain: Yes
High-Shelf: - 2 dB, 0 dB, +2 dB
Low-Shelf: - 2 dB, 0 dB, +2 dB

INPUT CONNECTORS
Analog: XLR, RCA
Input Impedance: 10 kOhm / 20 kOhm

GENERAL DATA
Frequency Response: 45 Hz - 25 kHz
THD > 80 Hz: 0.5 %
Max. SPL per pair at 1 m: >=106 dB
Crossover Frequency: 3 kHz
Max. Power Consumption: 132 W
Weight: 12.6 lbs (5.7 kg)
Height x Width x Depth: 11.7" x 7" x 11.7" (298 mm x 179 mm x 297mm)
Manufacturer's Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents: Power cord, Quick Start Guide
